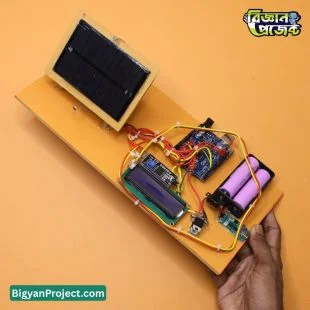

Single Axis Solar Sun Tracker with Voltage Display

Automatic Solar Sun Tracker with Smart Day-Night Light Control Overview: The Automatic Solar Sun Tracker with Smart Day-Night Light Control from Bigyan Project is an advanced educational science project that tracks sunlight and generates power efficiently. The system automatically rotates the solar panel toward the sunlight using dual 5mm LDR sensors. When sunlight is detected, a red 5mm LED indicator glows to show that the battery is charging, and the LCD display shows the generated voltage in real time. When sunlight is absent, the LCD display turns blank, the red charging LED turns off, and the connected home LED light automatically turns on, acting as a smart night lamp. This makes the project not only educational but also functional and practical for real-world learning on solar automation. Specifications: Tracking Type: Single Axis Automatic Sun Tracking Main Controller: Arduino Uno R3 Light Sensor: 2pcs 5mm GL5516 LDR Photoresistor Solar Panel: 5V 0.75W (99x69mm) Display: 16x2 LCD Display with I2C Module Servo Motor: MG90s RC 9g Semi-Metal Gear (180° rotation) Indicator LED: 5mm Red LED for Charging Indication Night Light: Automatic LED Light for Day-Night Switching Battery: 2pcs 18650 3.7V Li-Ion Rechargeable Battery Battery Holder: 2-Chamber 18650 Case Charging Module: Type-C 2S 8.4V Lithium Battery Charger Board Voltage Regulator: 3pcs LM7805 IC for 5V Output Switch: 6 Pin Slide Power Switch Frame: 5MM PVC Plastic Board Wiring: 1.6mm Slim 22AWG Cable Power Source: Solar Panel and Rechargeable Battery
